Thinking Outside the Square: How We Engineered an Octagonal Solution for a 7-Foot Vacuum Elevator

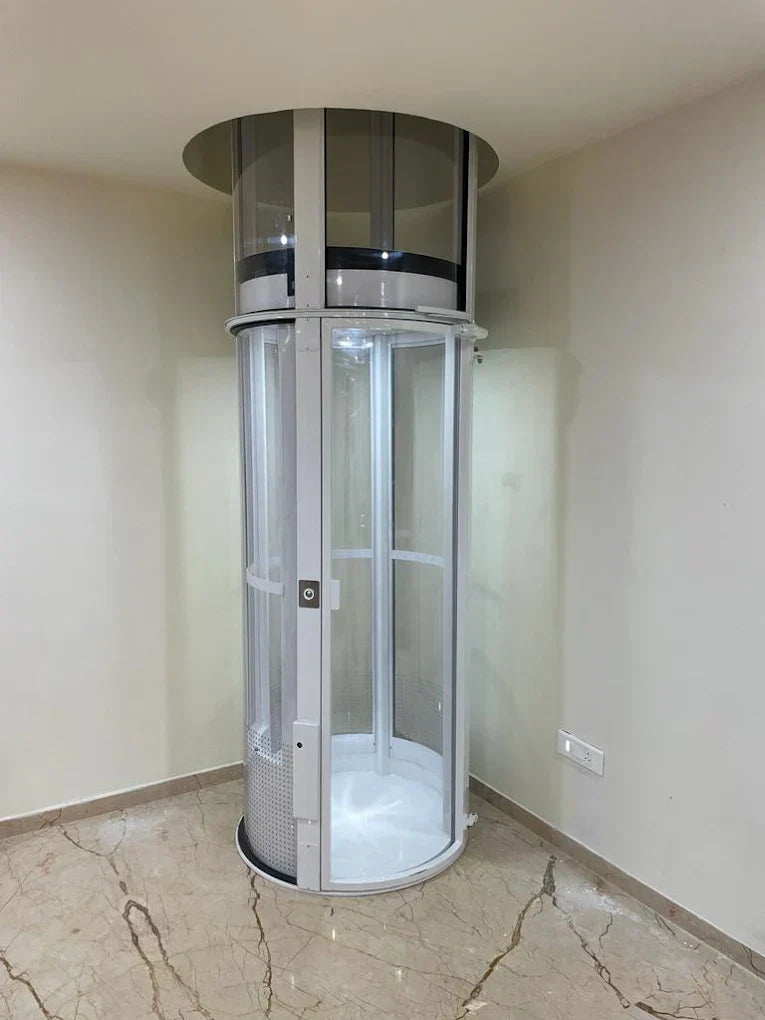

At Andal Packaging, we thrive on the phrase "it can’t be done." Recently, we were approached with a packaging challenge that tested the limits of traditional corrugated engineering: a fragile, cylindrical vacuum elevator body made of premium acrylic.
The specs alone were enough to make most manufacturers hesitate:
-
The Shape: A perfect cylinder.
-
The Material: Fragile, scratch-prone acrylic.
-
The Dimensions: A massive 1-meter diameter and a towering 2.2-meter height.
The Problem with Standard Squares
When dealing with a product that is over 7 feet tall and circular, a standard square box creates two major issues. First, the "void space" in the corners allows the product to shift during transit, increasing the risk of cracks. Second, a square box of this size is incredibly bulky to handle and wasteful on material.
The client suggested an octagon-shaped box, and we knew immediately that this was the right path—but executing it at this scale was the real challenge.
The Engineering Journey: Trial, Error, and Success
Designing a 2.2-meter tall octagonal sleeve isn't as simple as adding extra folds. It requires precise structural integrity to ensure the walls don't buckle under the weight and height.
-
Structural Prototyping: We went through several rounds of trial and error. The first few prototypes struggled with "waisting" (where the middle of the box bows inward). We had to adjust the GSM and Burst Factor (BF) of the Kraft paper to ensure the vertical columns of the octagon acted like pillars.
-
The Perfect Fit: The octagonal design naturally "hugs" the cylindrical elevator body. By reducing the gap between the product and the cardboard, we eliminated the need for excessive plastic filler while providing 8-point structural support.
-
Finalizing the Design: After rigorous testing, we finalized a heavy-duty, multi-layered octagonal solution that provides 360-degree protection for the acrylic surface.
Why Shape Matters in Industrial Packaging
This project proved that custom-shaped packaging isn't just about aesthetics—it’s about logistics efficiency. The octagonal design:
-
Saves Space: It has a smaller footprint than a square box, allowing for better truck loading.
-
Increases Strength: The multiple vertical scores (folds) add significant stacking strength.
-
Reduces Damage: A snug fit is the best defense against the vibrations of the road.
We Accept the Challenge
Whether you are shipping standard e-commerce goods or 2-meter tall industrial machinery, your packaging should be as well-engineered as the product inside. This project was a reminder that with the right expertise and a bit of persistence, even the most "fragile" challenges can be boxed up safely.
Have a "difficult" product that needs a custom packaging solution? Let’s build it together.
